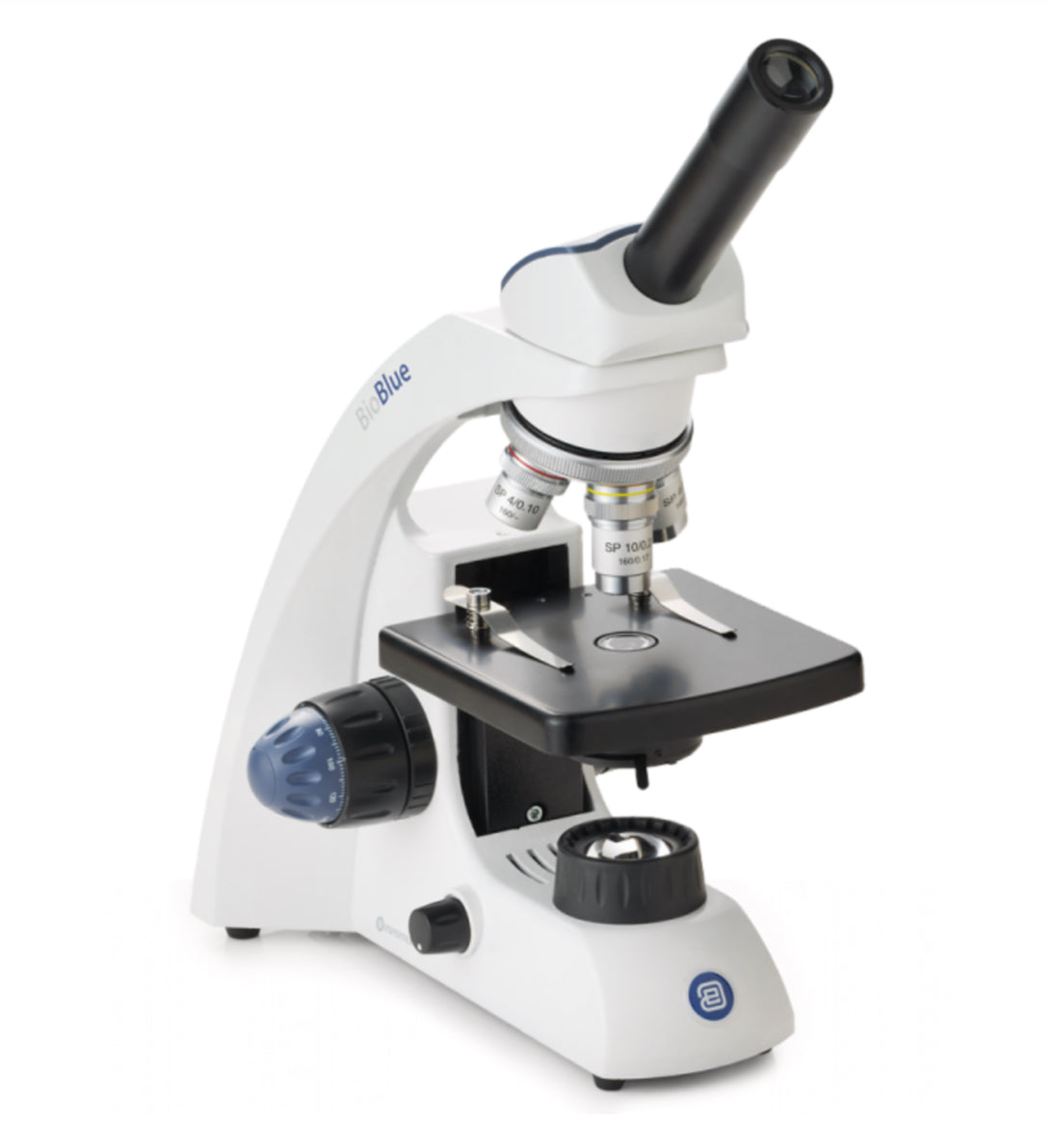

Euromex BB.4200 BioBlue Monocular Student Microscope, 40x-400x

BioBlue compound microscopes from Euromex in the Netherlands are designed for education offering excellent optical and ergonomic performance to satisfy the needs of school classrooms. BioBlue microscopes incorporate a range of professional features and robust construction that offer incredible value for money.

Optics
This BioBlue model, BB.4200, is equipped with a monocular head, Siedetopf 45° inclined 360° rotating, having WF 10x/18mm eyepiece with pointer and semi plan achromatic objectives, 4x, 10x and S40x. The crisp high resolution images at 40x, 100x and 400x magnification remain perfectly in focus when changing magnification. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.

Stage & Focusing
Featuring 120 x 120 mm plain stage supplied with two non-removable object clamps. Coaxial coarse and fine focus adjustment is provided with 200 graduations. Precision of 2 μm with 0.4 mm per rotation. Total travel is approximately 23 mm with adjustable rack stop to prevent damage to samples and objectives. The course adjustments are equipped with friction control.

Condenser & Illumination
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder. Adjustable illumination is provided by 1W LED.

Supplied with an external 100-240 V mains adapter/charger and 3 rechargeable batteries for corded or cordless use. Easy transportation with ergonomic carrying handle.

Polarisation can be added with optional analyser mounted in a slider and rotatable polariser. View alternative models of BioBlue range on the Similar Products Tab.

Features include:

* Monocular head 45° inclined 360° rotating
* WF 10x/18 mm eyepiece with pointer
* Reversed quadruple nosepiece on ball bearings
* Semi-pan achromatic objectives 4x, 10x, & S40x
* Total magnification 40x, 100x & 400x
* 120 x 120 mm plain stage supplied with two non-removable object clamps
* Coaxial coarse and fine focus adjustment with rack stop
* Height adjustable Abbe condenser with iris diaphragm and filter holder
* Ergonomic stand with carrying handle
* Battery powered cordless use
* 1W LED illumination dimmable
* 10 Year warranty (2 years for electrical parts)
* Dimensions in mm: 340 (h) x 155 (w) x 230 (d)
* Weight 3.0kg

Box contains:-
Microscope, power cord, dust cover, spare fuse and user manual. All packed in styrofoam case.

Accessories

Euromex offer a range of accessories including digital cameras, eyepieces, objectives and lighting. We have selected some of the more popular optional items for this microscope which can be found on the Related Accessories tab.
